Fabula Energy FZ-LLC

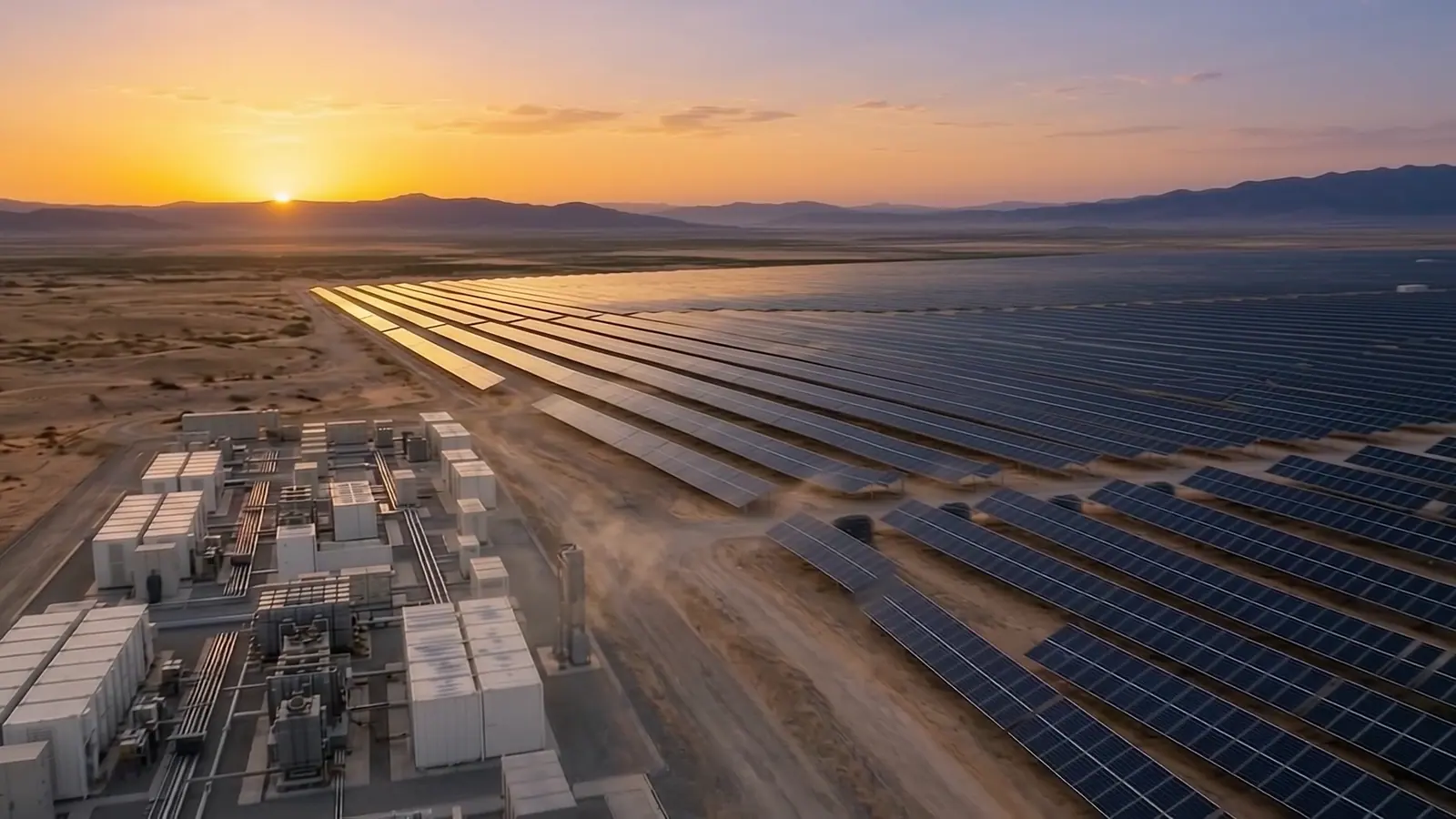

Aerial view of a utility-scale solar farm and battery storage yard in the desert at sunrise

Headquartered in DubaiConnecting global clean energy markets

Powering sovereign transition.

Trading Tier 1 solar, storage and grid infrastructure.

Fabula Energy connects leading manufacturers with utilities, developers, EPC contractors and industrial operators across the Middle East, Africa and emerging markets, from the solar module to the customer's meter.

Specifications and logistics
N-type TOPCon and HJT
Current-generation module architectures
MWh to GWh
Storage supplied at utility scale
Tier 1 sourced
Manufacturers on the BloombergNEF Tier 1 list
Dubai hub
Sea freight and free zone cross-trade routing

Trading solutions

Generation and storage, specified for heat and scale.

We trade what large projects are built from: high-output modules and the storage that firms them. Every lot comes from a manufacturer that lenders already accept.

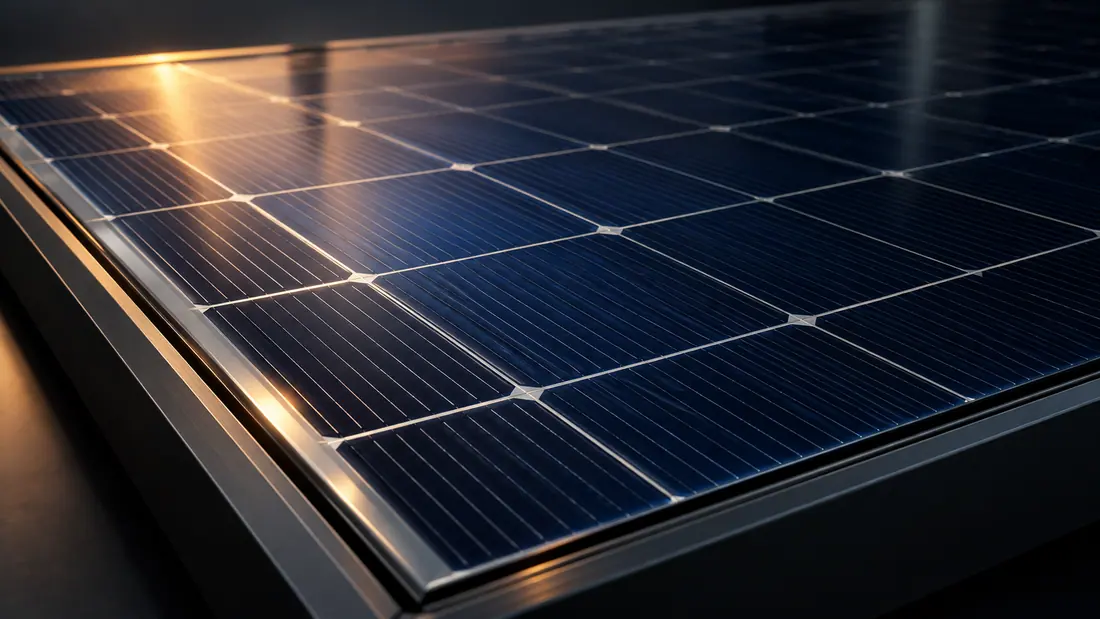

Close-up of high-efficiency N-type photovoltaic cells beneath tempered glass

Photovoltaics

Solar PV modules

Bifacial dual-glass modules in N-type TOPCon and heterojunction. Low temperature coefficients keep output up when cell temperatures pass 65 °C, which in the Gulf is most summer afternoons.

Power classes
550 W to 720 W and above
Cell technology
N-type TOPCon, heterojunction (HJT)
Construction
Bifacial, dual glass, half-cut cells
Temp. coefficient
−0.24 to −0.29 %/°C
2384 mm1303 mm
Fig. 1Utility-class module, 2384 × 1303 mm, 132 half-cut cells in two strings.
80%85%90%95%100%25°35°45°55°65°75°Cell temperature, °CHJTTOPConPERC
Fig. 2Output against cell temperature. At 75 °C an N-type TOPCon module still delivers 85.5% of rated power. An older PERC module delivers 82.5%.

Storage

Battery energy storage

Lithium iron phosphate systems, from a single cabinet behind a factory meter to multi-container blocks on the transmission grid.

Chemistry
Lithium iron phosphate (LiFePO4)
Utility units
20 ft and 40 ft containers
C&I units
Modular cabinets, 100 to 500 kWh
Built in
Liquid cooling, fire suppression, smart BMS

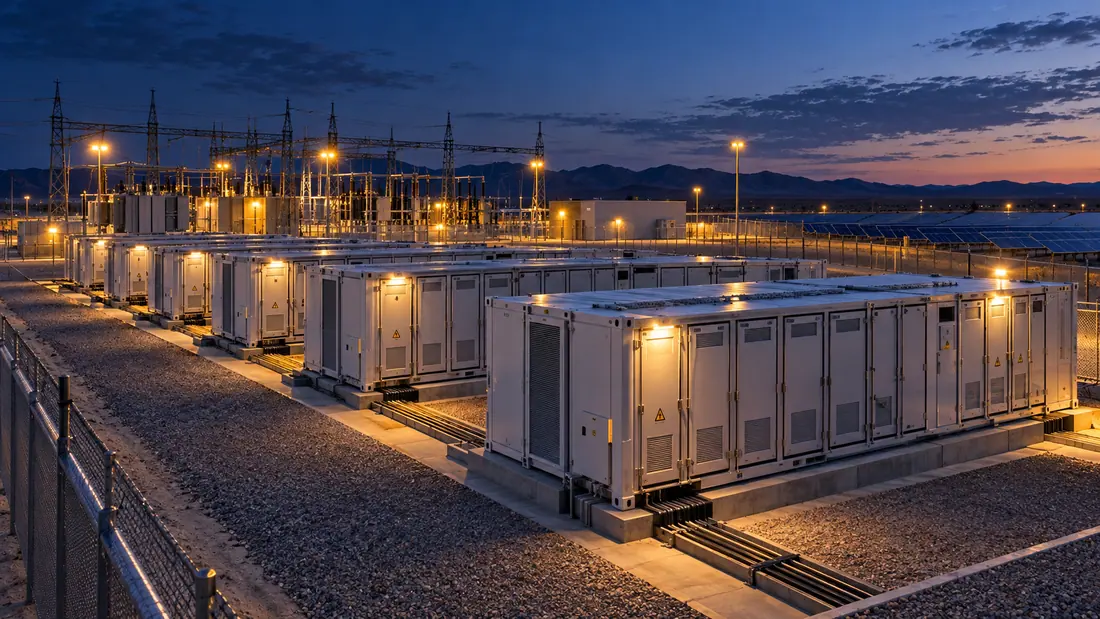

Grid-scale containerised battery energy storage facility beside a substation at dusk
6058 mm / 20 ft ISOLFP racksLiquid cooling
Fig. 320 ft liquid-cooled container, 5 MWh class, with eight LFP rack bays.
PV arrayDCPCSDC / ACGridor site loadBESSLFP storage
Fig. 4Solar plus storage. The array charges the battery through the power conversion system, which also feeds the grid or the site.

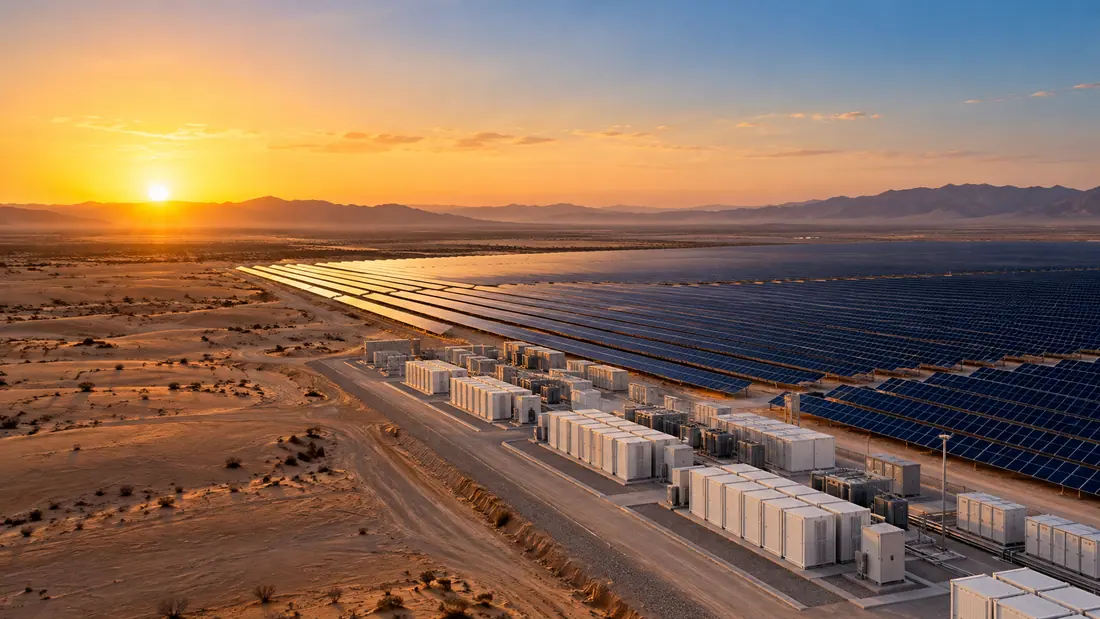

Utility-scale solar farm and battery storage facility in a desert landscape at sunrise

Hybrid infrastructure

Solar and storage as one package

Modules, storage and power conversion specified to work together, for peak shaving, microgrid stability and solar that keeps delivering after sunset. Buying both from one desk means one set of shipping documents, and one place to call when a warranty question comes up.

Where it goes

The same product lines, sized for six kinds of site.

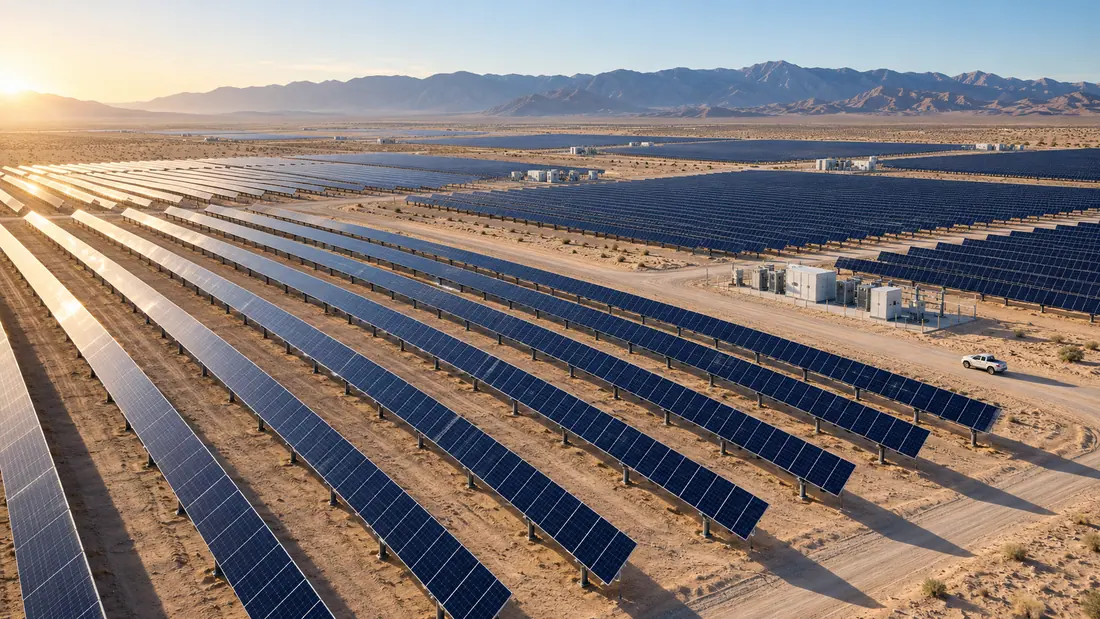

  • Rows of single-axis tracker solar panels across an arid utility-scale site

    Utility ground mount

    01

    10 MW and above

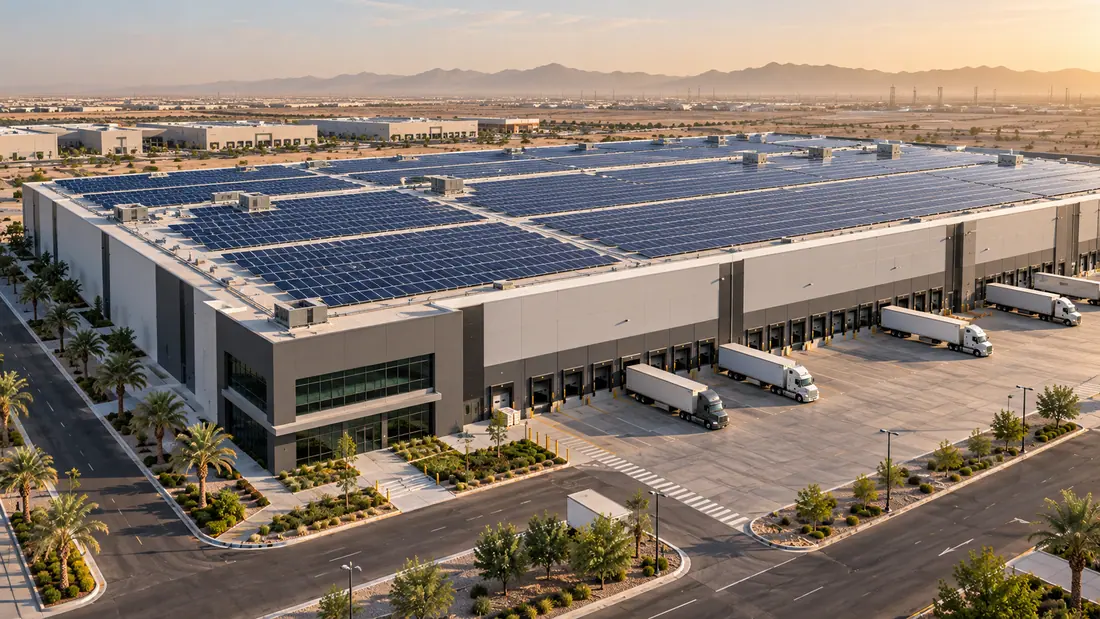

  • Large distribution warehouse with an extensive rooftop solar installation

    Commercial rooftop

    02

    0.5 to 10 MW

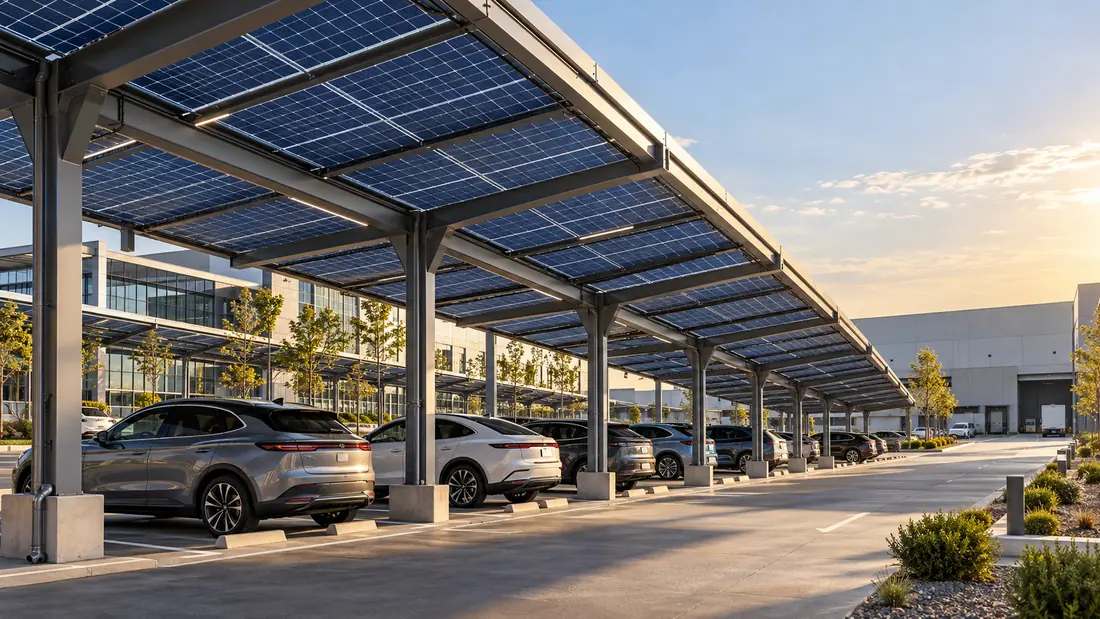

  • Photovoltaic carport canopies at a commercial and industrial campus

    Solar carports

    03

    Commercial campuses

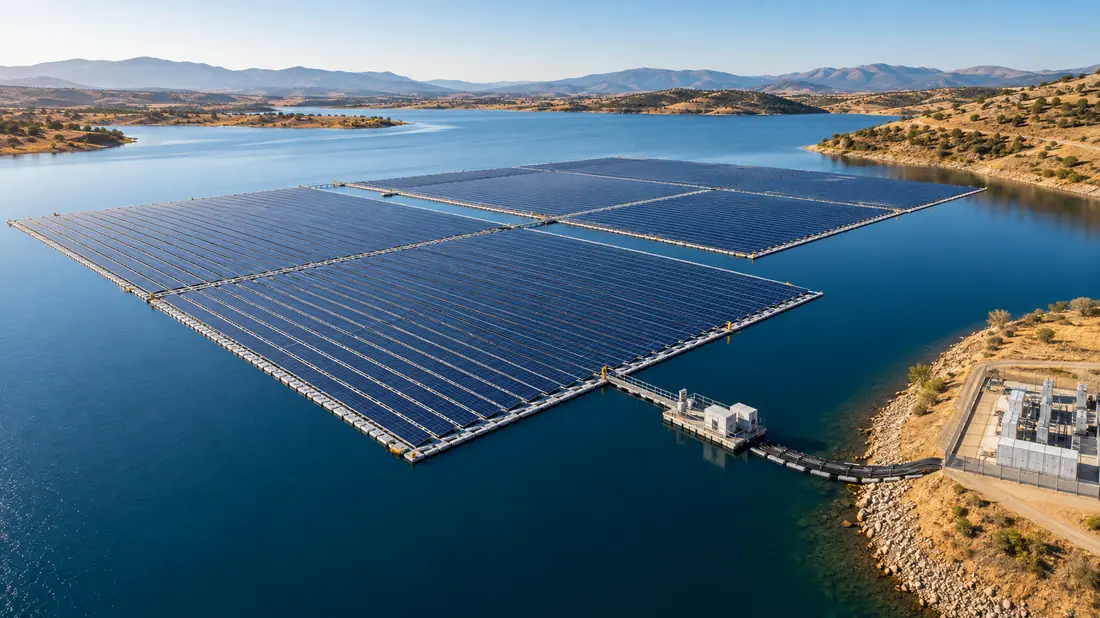

  • Large floating solar array installed on a reservoir in a dry region

    Floating solar

    04

    Reservoirs and basins

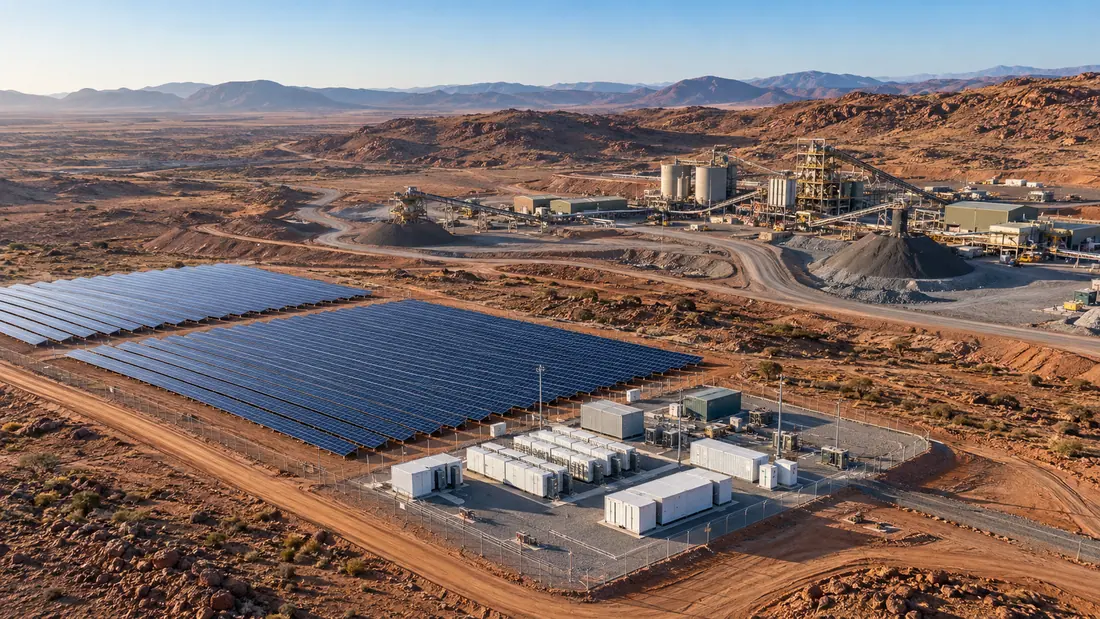

  • Solar and battery microgrid supplying a remote industrial site in an arid landscape

    Off-grid microgrids

    05

    Solar plus storage

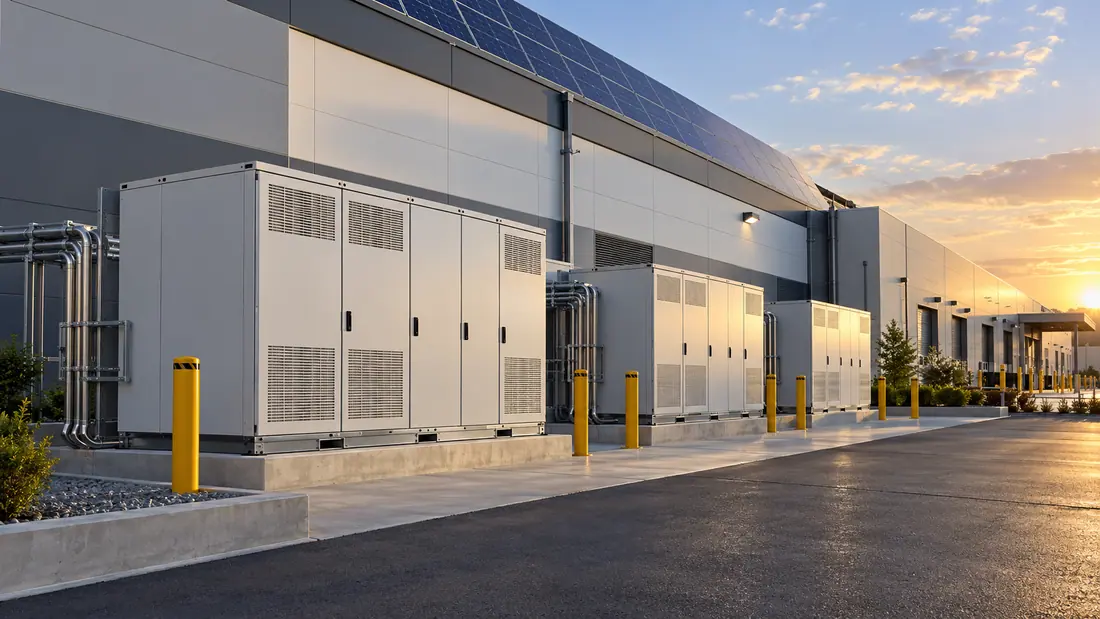

  • Outdoor modular battery cabinets installed beside a solar-powered industrial building

    C&I storage

    06

    100 to 500 kWh cabinets

Grid infrastructure

From the substation to the meter.

Generation is only half a project. The power still has to be stepped up, carried, switched, stepped down and billed. We supply and install the equipment that does that: transformers, substations, transmission lines, distribution feeders and smart meters, sourced from manufacturers that utilities and lenders already accept.

11 kV to 400 kV
Voltage range supplied
Supply and install
Delivered, erected and commissioned
IEC and ANSI
Built to the standard your utility specifies
Bank of smart electricity meters installed on a building wall.

Metering

Smart meters and AMI

Prepaid and smart meters for homes, businesses and substations, with the network and software that read them remotely. Utilities cut losses, bill on real readings and disconnect or reconnect without sending a truck.

Meter types
Single-phase, three-phase, CT and CT/VT connected
Payment
Prepaid (STS keypad and split), postpaid, smart card
Communication
PLC, RF mesh, 4G, NB-IoT
System
Data concentrators, head-end system, MDM and vending

IEC 62052 / 62053, IEC 62055 (STS), DLMS/COSEM.

Oil-immersed power transformer with radiators and bushings in a high-voltage substation.

Transformers

Power and distribution transformers

From pole-mounted units on a rural feeder to grid transformers in a 400 kV yard. Each unit is designed for its site's ambient temperature, altitude and load profile, and factory-tested before it ships.

Distribution
25 kVA to 2.5 MVA, 11, 22 and 33 kV
Power
5 MVA to 300 MVA, up to 400 kV, on-load tap changer
Construction
Oil-immersed (ONAN / ONAF) or cast-resin dry type
Testing
Routine and type tests to IEC 60076, witnessed on request

IEC 60076, IEEE C57, low-loss designs to EU Ecodesign Tier 2 on request.

High-voltage substation with steel gantries, breakers and busbars at dawn.

Substations

Substations and switchgear

Complete substations, from a skid-mounted 33/11 kV unit to a 400 kV grid station. Air-insulated where land is cheap, gas-insulated where it is not, and packaged units that arrive pre-wired and pre-tested to cut site time.

Substation types
AIS, GIS, hybrid, packaged and mobile
Voltage
11 kV to 400 kV
Switchgear
HV circuit breakers, disconnectors, MV panels, ring main units
Control
Protection relays, IEC 61850 automation, SCADA, battery and DC systems

Also supplied: capacitor banks, shunt reactors, earthing systems, control buildings and civil works.

Line of high-voltage lattice transmission towers carrying conductors across open land at dusk.

Transmission

Transmission lines

Overhead lines and underground cable that carry bulk power from the plant to the load centre. We supply the full line package, tower steel to conductor to fibre, and string it with experienced line crews.

Towers
Galvanised lattice steel and monopoles, 66 kV to 400 kV
Conductors
ACSR, AAAC and high-temperature low-sag (HTLS)
Insulators
Composite, toughened glass and porcelain strings
Fibre and cable
OPGW earth wire, XLPE underground cable to 220 kV

Also supplied: line hardware and fittings, dampers, foundations, route survey and right-of-way support.

Medium-voltage distribution poles with pole-mounted transformers and overhead conductors.

Distribution

Distribution feeders

The medium- and low-voltage network that reaches every customer. We build new feeders and rebuild overloaded ones, and add the switching and automation that turns a four-hour outage into a four-minute one.

Lines
11, 22 and 33 kV overhead on concrete, steel or wood poles
Cable
Aerial bundled cable (ABC) and MV/LV underground cable
Switching
Ring main units, auto-reclosers, sectionalisers, load break switches
Automation
Fault passage indicators, remote terminal units, feeder SCADA

Also supplied: pole-mounted and pad-mounted transformers, LV networks, service connections and street lighting.

Two engineers in high-visibility jackets walking into a high-voltage substation

Supply and install

Supplied, installed and commissioned.

Grid equipment is rarely bought off a shelf. We take a project from the utility's specification to energisation, with one contract, one schedule and one point of contact. Buy the equipment alone, or have us deliver the whole package.

  1. 01

    Design and specification

    Load studies, single-line diagrams and equipment schedules matched to the tender.

  2. 02

    Manufacture and inspection

    Factory acceptance tests witnessed by our engineers before anything ships.

  3. 03

    Delivery and installation

    Shipped through Jebel Ali, then erected, strung and wired by experienced crews.

  4. 04

    Testing and handover

    Commissioning, energisation, as-built drawings and operator training.

Global sourcing

From the factory gate to the project site.

Four stages, sixteen checkpoints. Open a stage to see what is inspected there and what paperwork travels with the cargo.

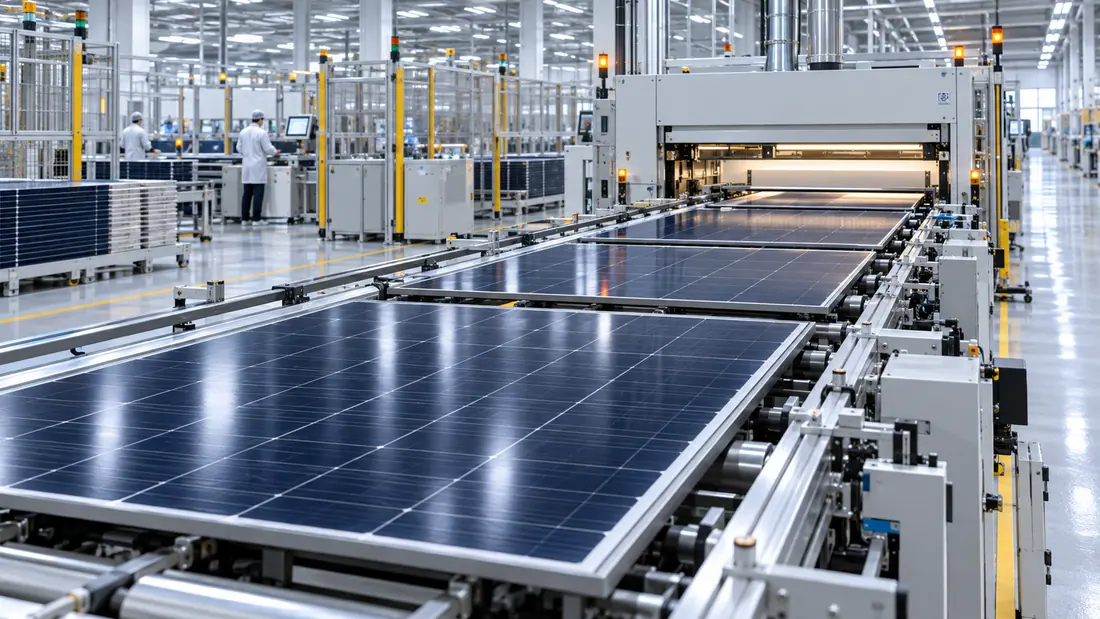

Automated photovoltaic module manufacturing line in a clean factory

Stage 01 of 04

  1. We buy only from manufacturers whose modules and cells are already financed by banks. Before an order is released we check that what leaves the line matches the datasheet you were quoted.

    • QC-01

      Tier 1 and bankability check

      Supplier status on the BloombergNEF Tier 1 list and recent project finance history.

    • QC-02

      Bill of materials lock

      Cells, glass, encapsulant and junction box fixed to the certified construction.

    • QC-03

      Pre-shipment EL imaging

      Electroluminescence images reviewed for microcracks and cell defects before packing.

    • QC-04

      Flash test reconciliation

      IV-curve flash list checked against nameplate power, serial by serial.

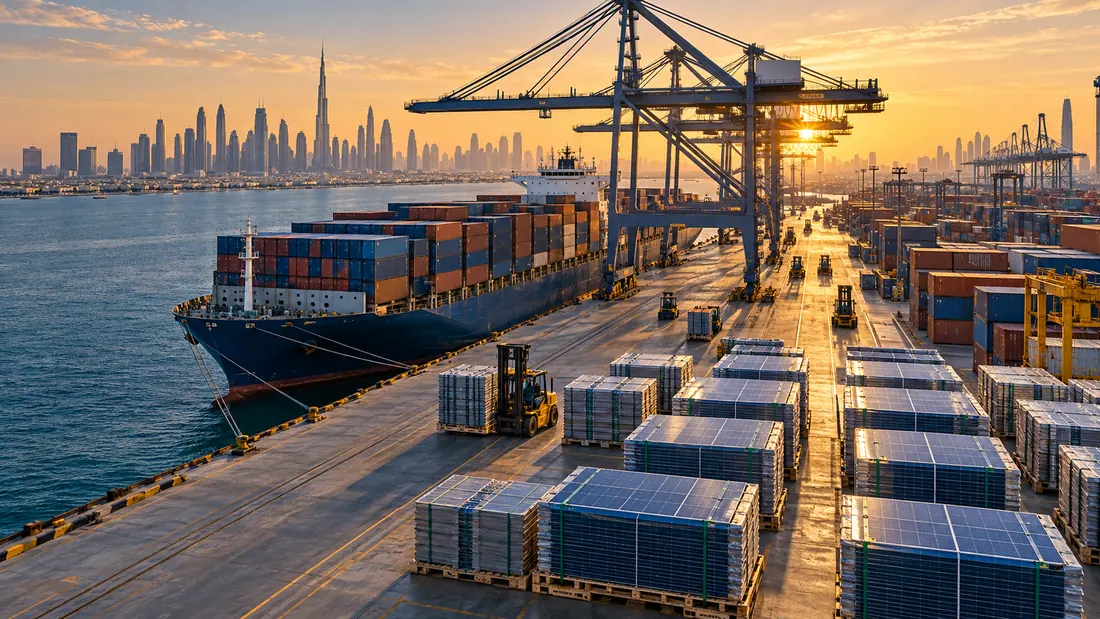

Solar module shipments being handled at a major Gulf container port

The Dubai advantage

A trading base between the factories and the projects.

Most modules and cells are made in East Asia. Most of the new demand is in the Gulf, Africa and Central Asia. The UAE sits on the shipping lanes between them.

  1. 01

    Jebel Ali Port

    The largest container port in the Middle East, with direct sailings to the Gulf, East Africa, the Red Sea and the Mediterranean.

  2. 02

    Air cargo for urgent lots

    Dubai International and Al Maktoum International handle replacement parts and small lots when a commissioning date cannot move.

  3. 03

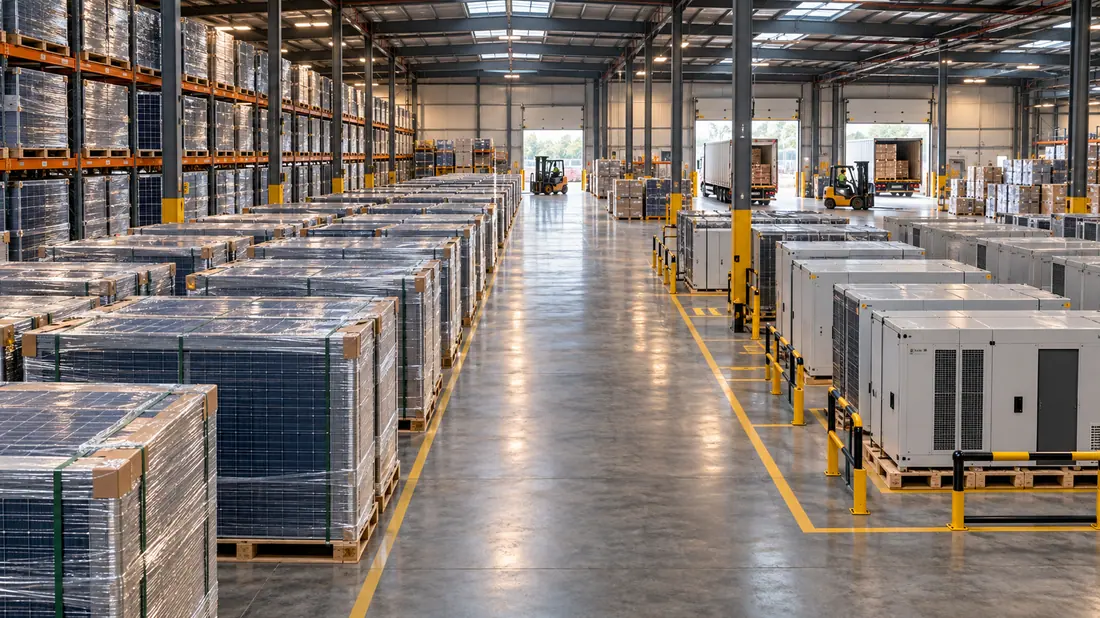

    Bonded warehousing

    Free zone storage keeps goods outside UAE customs territory, so stock can be held, split and re-exported without UAE import duty.

  4. 04

    Letter of credit settlement

    Confirmed and transferable letters of credit or telegraphic transfer, in US dollars, euros or dirhams, to match how the project is financed.

Dubai--:-- GSTDesk closed
  • PV / N-type TOPCon580 to 720 W
  • PV / HJT700 to 730 W
  • Temp. coefficient−0.24 to −0.29 %/°C
  • BESS / 20 ft LFP5 MWh class
  • BESS / C&I cabinet100 to 500 kWh
  • GHI / UAE2,100 to 2,300 kWh/m² typ.
  • GHI / Saudi Arabia2,200 to 2,400 kWh/m² typ.
  • GHI / Egypt2,000 to 2,600 kWh/m² typ.
  • IncotermsFOB / CIF / DAP
  • SettlementLC and TT, multi-currency
  • HubJebel Ali, Dubai

Quality

Bankable on paper before it ships.

Certificates are issued to the manufacturer, not to us. Our job is to check they are current, that they cover the exact model in your order, and to hand you the documents with the quotation.

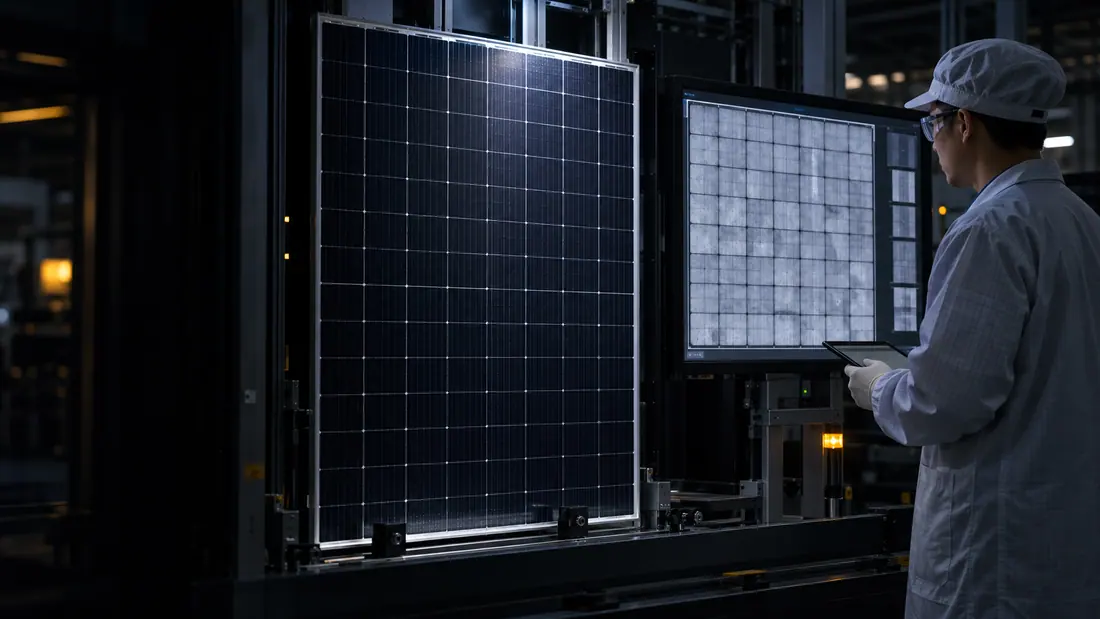

  • Engineer reviewing an electroluminescence inspection of a photovoltaic module

    At the factory

    Electroluminescence imaging shows microcracks and dead cells that the eye cannot see.

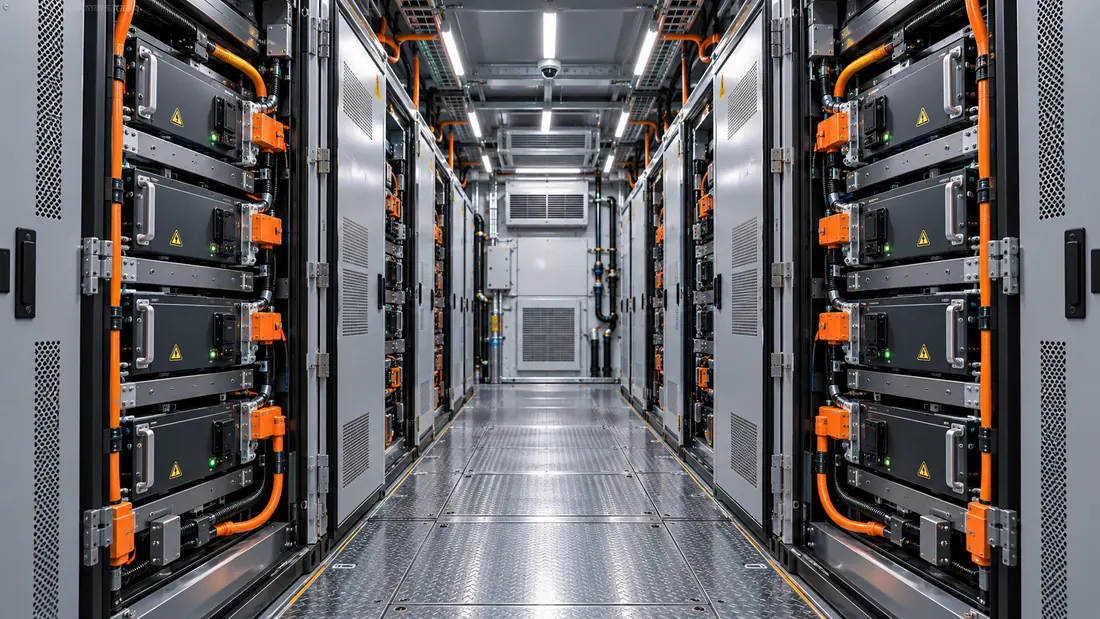

  • Service aisle between enclosed LFP battery racks with high-voltage cabling

    In the product

    Storage racks are checked against the certified build: cells, cooling loop and fire suppression.

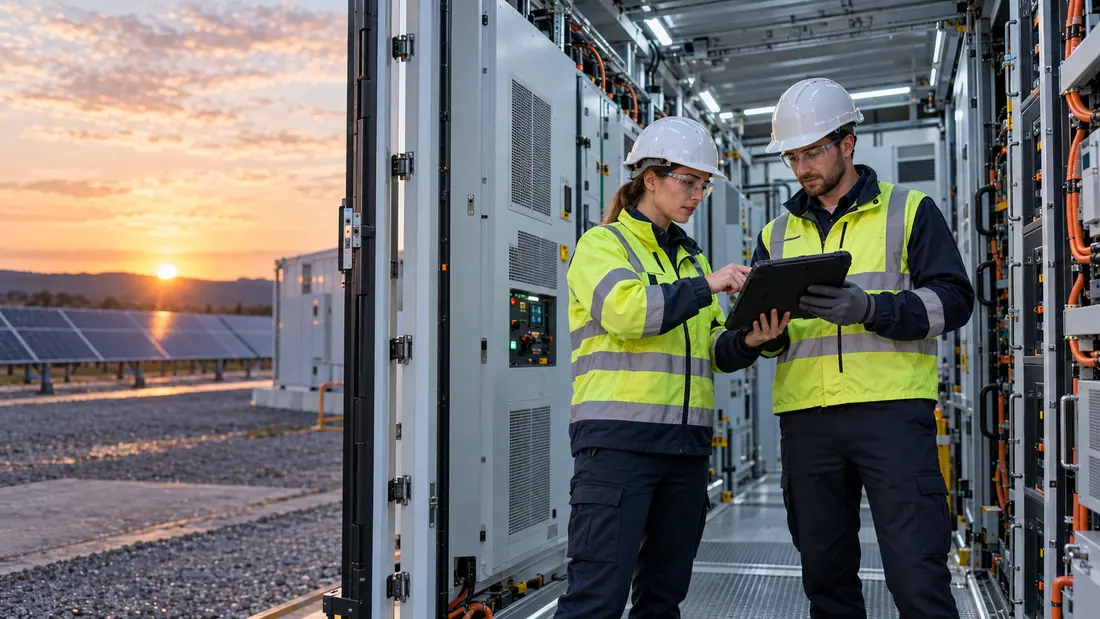

  • Engineers commissioning a containerised battery energy storage system

    On site

    Commissioning is done with the manufacturer's engineers, and the warranty is registered to the owner.

Standards we check against

Certification standards verified for each product line before an order is released
StandardScopeApplies to
IEC 61215Design qualification and type approvalDesign qualification and type approvalPV modules
IEC 61730Module safety qualificationModule safety qualificationPV modules
IEC 61701Salt mist corrosion resistanceSalt mist corrosion resistancePV modules
IEC 60068-2-68Sand and dust abrasionSand and dust abrasionPV modules
UL 61730North American module safetyNorth American module safetyPV modules
IEC 62619Safety of industrial lithium cells and batteriesSafety of industrial lithium cells and batteriesStorage
UL 9540 / 9540AStorage system safety and thermal runaway propagationStorage system safety and thermal runaway propagationStorage
UN 38.3Transport testing for lithium batteriesTransport testing for lithium batteriesStorage
CEConformity with EU directivesConformity with EU directivesBoth
TÜV RheinlandIndependent type testing and factory inspectionIndependent type testing and factory inspectionBoth
ISO 9001 / 14001 / 45001Quality, environmental and safety managementQuality, environmental and safety managementManufacturer

25 to 30 years, in a straight line

80%85%90%95%100%051015202530Years in service87.4%
Fig. 5Linear output warranty for a typical N-type module: 1% loss in the first year, then 0.4% a year. Exact terms vary by manufacturer and are stated on each quotation.
Supply base
BNEF Tier 1
Manufacturers on the BloombergNEF Tier 1 module list.
Product warranty
12 to 15 years
Typical for modules. Storage terms are set per project duty cycle.

Trading desk

Size the order, then send it to the desk.

Set the project type and capacity. The estimator works out module and container counts and a storage configuration, ready to send as a request for quotation.

1Project type

2Target capacity

50MW

Planning estimate

Utility solar

Modules
71,429
N-type TOPCon, 690 to 720 W
40 ft high-cube containers
121
For 50 MW DC of modules
  • Modules ship 594 to a 40 ft high-cube container for this class.

Planning figures only. Counts are confirmed against the manufacturer datasheet and packing list on the quotation.

3Send to the trading desk

We reply with availability, lead time and a price for the specification above.

* Required

This opens your email app with the specification filled in. Nothing is stored on this website.

Corporate footprint

A Dubai desk serving four regions.

Fabula Energy FZ-LLC is a UAE free zone company licensed to trade solar energy systems and components. We supply developers, EPC contractors and industrial operators who buy by the container.

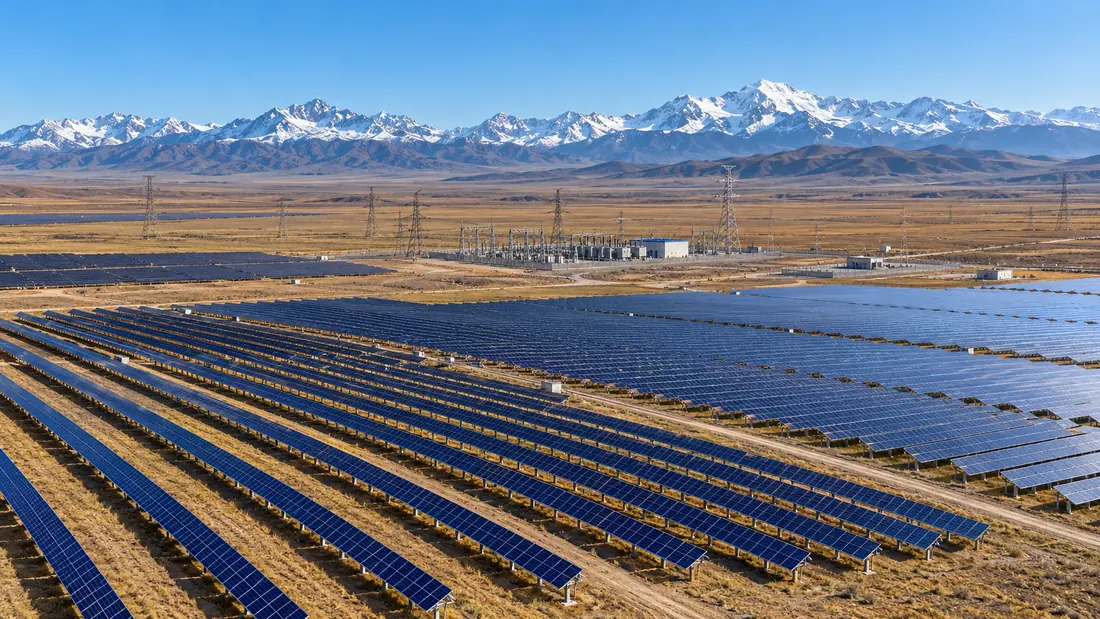

Utility-scale solar project on a Central Asian plain beneath snow-capped mountains
Utility-scale solar on a Central Asian plain. Illustrative image.
DammamJeddahAqabaAlexandriaCasablancaDubai

Illustrative links, not shipping lanes

Operational reach

  • Utility tenders and industrial self-generation across the Gulf, the Levant and North Africa.

    Routing
    Short-sea from Jebel Ali, or overland within the GCC.
    Destinations
    Dammam, Jeddah, Aqaba, Alexandria, Casablanca
  • Mini-grids, mining loads and commercial rooftops where diesel is the fuel to beat.

    Routing
    Direct sailings from Jebel Ali to East and Southern African ports.
    Destinations
    Djibouti, Mombasa, Dar es Salaam, Durban, Lagos
  • Grid-scale solar and storage programmes in landlocked markets.

    Routing
    Sea to the northern Gulf, then rail and road, or air freight for urgent lots.
    Destinations
    Ashgabat, Tashkent, Almaty
  • EPCs and distributors that need certified stock with full documentation.

    Routing
    Via the Red Sea and Suez to Mediterranean and North Sea ports.
    Destinations
    Piraeus, Constanta, Valencia, Rotterdam

Trading desk

info@fabulaenergy.com

+971 56 311 3110Monday to Friday, 09:00 to 18:00 GST

Registered office

Fabula Energy FZ-LLCFDCW0828, Compass BuildingAl Shohada RoadAl Hamra Industrial Zone-FZRas Al Khaimah, United Arab Emirates

Corporate registration

Commercial licence
No. 5028493
Issued by
Ras Al Khaimah Economic Zone Authority (RAKEZ)
Legal form
Free Zone Limited Liability Company (FZ-LLC)
Cargo vessel carrying energy equipment across calm water at sunrise

Tell us what you are building.

Send a capacity and a destination. The desk replies with availability, lead time and a price.

Wholesale inventory

Product classes on offer

Figures are typical for each class across Tier 1 manufacturers. Availability changes weekly, so the desk confirms stock, brand and datasheet with every quotation.

Solar PV modules

  • N-type TOPCon, 580 to 625 W

    Commercial rooftop, C&I ground mount, microgrids

    Dimensions
    2278 × 1134 mm
    Efficiency
    up to 23.2%
    Temp. coeff.
    −0.29 %/°C
    Bifaciality
    80% ±5
    Per 40 ft HC
    720 modules
  • N-type TOPCon, 690 to 720 W

    Utility ground mount on single-axis trackers

    Dimensions
    2384 × 1303 mm
    Efficiency
    up to 23.2%
    Temp. coeff.
    −0.29 %/°C
    Bifaciality
    80% ±5
    Per 40 ft HC
    594 modules
  • Heterojunction (HJT), 700 to 730 W

    High-albedo desert sites and floating arrays

    Dimensions
    2384 × 1303 mm
    Efficiency
    up to 23.5%
    Temp. coeff.
    −0.24 %/°C
    Bifaciality
    85% ±5
    Per 40 ft HC
    594 modules

Battery energy storage

  • 20 ft liquid-cooled container

    Utility storage, peaker plants, solar plus storage

    Energy
    5 MWh class
    Cells
    LFP, 314 Ah prismatic
    Cooling
    Liquid cooling
    Protection
    Aerosol and water-based fire suppression, smart BMS
  • 40 ft integrated container

    Turnkey blocks where PCS and battery ship as one unit

    Energy
    Configured per project
    Cells
    LFP prismatic
    Cooling
    Liquid cooling
    Protection
    Integrated PCS, fire suppression, smart BMS
  • C&I modular cabinet

    Peak shaving, backup and behind-the-meter solar

    Energy
    100 to 500 kWh
    Cells
    LFP, 280 Ah prismatic
    Cooling
    Liquid or forced-air cooling
    Protection
    Outdoor rated enclosure, cabinet-level fire suppression

Grid infrastructure

  • Smart prepaid meters

    Residential and commercial revenue metering

    Phase
    single and three-phase
    Payment
    STS prepaid, postpaid
    Comms
    PLC, RF, 4G
  • AMI system

    Utility-wide remote reading and loss reduction

    Scale
    10,000 to 1 million meters
    Parts
    concentrators, HES, MDM
    Protocol
    DLMS/COSEM
  • Distribution transformer

    Feeders, mini-grids, industrial sites

    Rating
    25 kVA to 2.5 MVA
    Voltage
    11 to 33 kV
    Type
    oil or dry
  • Power transformer

    Grid and plant substations

    Rating
    5 to 300 MVA
    Voltage
    up to 400 kV
    Tap changer
    on-load
  • Packaged substation

    Fast-track connections, mines, solar plants

    Voltage
    11 to 33 kV
    Rating
    up to 5 MVA
    Delivery
    pre-wired, pre-tested
  • HV substation (AIS / GIS)

    Grid connection and bulk supply points

    Voltage
    66 to 400 kV
    Scope
    turnkey
    Control
    IEC 61850
  • Overhead transmission line

    Plant to grid, interconnectors

    Voltage
    66 to 400 kV
    Conductor
    ACSR, AAAC, HTLS
    Fibre
    OPGW
  • MV distribution feeder

    Network extension and reinforcement

    Voltage
    11, 22, 33 kV
    Poles
    concrete, steel, wood
    Switching
    RMU, reclosers
